Description
DS-2SE4C425MWG-E/26(F0)

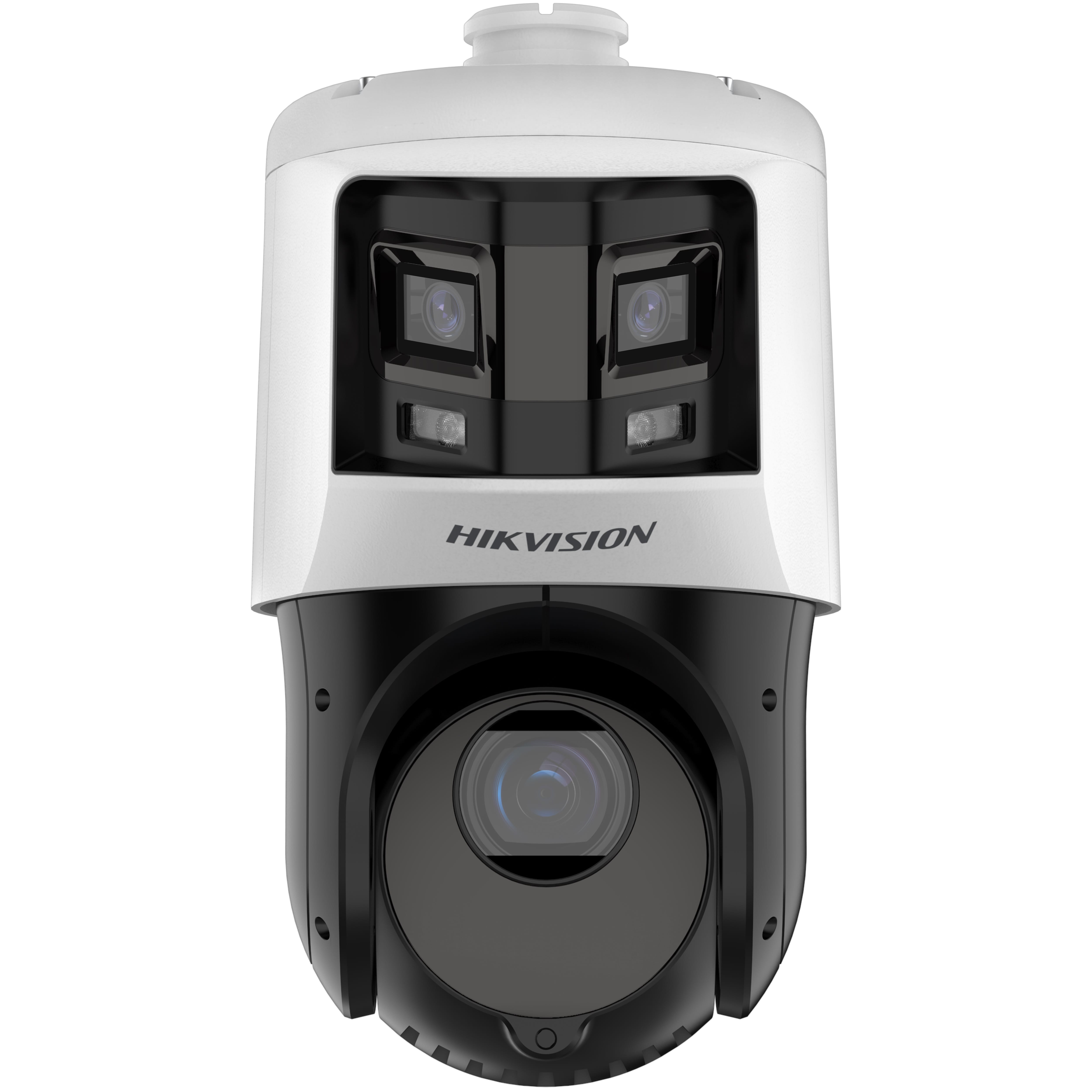

Hikvision TandemVu 6+4MP 25X ColorVu & IR Acusense Panoramic Network Speed Dome Camera
Datasheet:
DS-2SE4C425MWG-E/26(F0)
- Captures a large area and great details at the same time.
- High quality panoramic imaging with 6 MP resolution and details imaging with 4 MP.
- Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology.
- Secures an expansive area with 25× optical zoom and 16× digital zoom.
- Expansive night view with up to 100 m IR distance ＆ 30 m white light.
- Supports 12V DC ＆ PoE+.
- Focuses on human and vehicle targets classification based on deep learning.
| Camera | |
| Image Sensor | [Bullet channel]: 1/2.5″ Progressive Scan CMOS; [PTZ channel]: 1/2.8″ progressive scan CMOS |
| Max. Resolution | [Bullet channel] 3632 × 1632, [PTZ channel] 2560 × 1440 |
| Min. Illumination | [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;
[PTZ channel]: Colour: 0.005 Lux @ (F1.6, AGC ON), B / W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/30,000 s |
| Day & Night | ICR |
| Zoom | [PTZ channel] 25 × optical, 16 × digital |
| Slow Shutter | yes |
| Lens | |
| Focal Length | [Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical |
| FOV | [Bullet channel]: Horizontal field of view: 180 ± 10°, Vertical field of view: 80 ± 5°; [PTZ channel]: Horizontal: 55° to 2.4° (wide-tele), Vertical: 33° to 1.4° (wide-tele), Diagonal: 61.5° to 2.8° (wide-tele) |
| Focus | semi-auto || manual || auto |
| Aperture | [Bullet channel]: F1.0; [PTZ channel]: F1.6 |
| Zoom Speed | [PTZ channel]: approx. 3.6 s |
| Illuminator | |
| Supplement Light Type | [PTZ channel]: IR; [Bullet channel]: White Light |
| Supplement Light Range | [PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m |
| Smart Supplement Light | Yes |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90° (auto flip) |
| Pan Speed | configurable 0.1° to 80° / s; preset speed 80° / s |
| Tilt Speed | configurable 0.1° to 80° / s; preset speed 80° / s |
| Proportional Pan | yes |
| Presets | 300 |
| Preset Freezing | yes |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans |
| Park Action | preset || pattern scan || patrol scan || auto scan || tilt scan || random scan || frame scan || panorama scan |
| 3D Positioning | yes |
| PTZ Status Display | yes |
| Scheduled Task | preset || pattern scan || patrol scan || auto scan || tilt scan || random scan || frame scan || panorama scan || dome reboot || dome adjust || aux output |
| Power-off Memory | yes |
| Video | |
| Main Stream | [Bullet channel] 50 Hz: 25 fps (3632 × 1632, 3680 × 1656) 60 Hz: 30 fps (3632 × 1632, 3680 × 1656)[PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | [Bullet channel] 50 Hz: 25 fps (1200 × 536, 960 × 432) 60 Hz: 30 fps (1200 × 536, 960 × 432)[PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | [Bullet channel]: No [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | H.265 || H.264 || MJPEG |
| Video Bit Rate | 32 kbps to 16384 kbps |
| H.264 Type | baseline profile || main profile || high profile |
| H.265 Type | main profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Audio | |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3 |
| Audio Bit Rate | MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC-LC: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz |
| Audio Sampling Rate | MP2L2: 32 to 192 Kbps; AAC-LC: 16 to 64 Kbps; MP3: 8 to 320 Kbps |
| Environment Noise Filtering | yes |
| Network | |
| Protocols | IPv4 / IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP / IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets |
| Simultaneous Live View | 20 |
| API | ISAPI, SDK, ISUP, ONVIF |
| User/Host | 32 |
| Security | Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter |
| Network Storage | NAS (NFS, SMB / CIFS), ANR |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | IE11+, Chrome57+, Firefox52+, Safari12+, Edge79.0.309.65+ |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | sharpness, saturation, brightness, contrast |
| Day/Night Switch | day, night, auto, scheduled-switch |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Defog | Digital defog |
| Image Stabilisation | EIS |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | [Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable |
| Regional Focus | Yes |
| Regional Exposure | Yes |
| Interface | |
| Ethernet Interface | RJ45, self-adaptive 10M / 100M Ethernet port |
| On-board Storage | Built-in memory card slot, support Micro SD / Micro SDHC / Micro SDXC, up to 256 GB |
| Audio | 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm ± 10%, 1 audio output, line level, impedance: 600 Ω |
| Alarm | 1 alarm input, 1 alarm output |
| Reset | yes |
| Event | |
| Basic Event | [PTZ channel] motion detection, video tampering alarm, [PTZ channel & bullet channel] alarm input and output, exception (IP conflict, HDD full, illegal login, HDD error, network disconnected, abnormal reboot) |
| Smart Event | [PTZ channel & bullet channel] audio exception detection, [PTZ channel] line crossing, intrusion, region entrance / exit; [Bullet channel] line crossing, intrusion, region entrance / exit |
| Linkage | Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, PTZ actions (preset, patrol, pattern) |
| Smart Linkage | Panorama Linkage |
| Deep Learning Function | |
| Face Capture | Detects up to 5 faces simultaneously. Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture |
| Regional People Counting | Yes |
| General | |
| Power | 12VDC, PoE+ |
| Dimension | Ø 166 mm × 375 mm (Ø 6.5″ × 14.7″) |
| Weight | Approx. 2.4 kg (13.2 lb.) |
| Material | ADC12 |
| Operating Condition | -30℃ to 65℃ (-22°F to 149°F), humidity ≤ 90% RH |
| General Function | mirror, watermark, password protection |
| Demist | Heating glass |
| Power Consumption and Current | Max. 24 W, including 2.6 W heater and 11 W supplement light |
| Approval | |
| Protection | IP66, 6000 V Lightning, Surge and Voltage Transient Protection |
