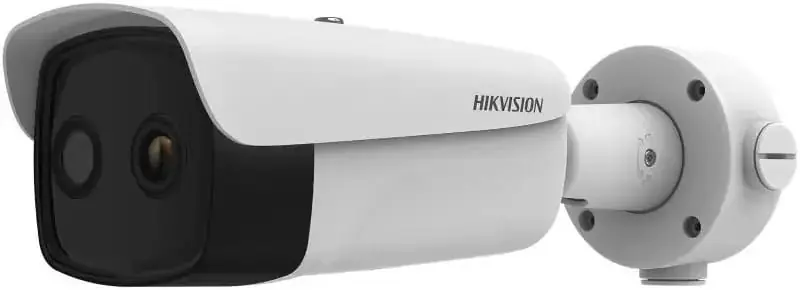

DS-2TD2637-10/QY
Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera
The Hikvision DS-2TD2637-10/QY Anti-corrosion Bi-spectrum Network Bullet Camera is designed for perimeter protection and fire prevention in crucial infrastructures like airports, railways, prisons, power stations, and 4S stores. Utilizing a vanadium oxide uncooled focal plane sensor, it significantly improves thermal image quality. Moreover, it features an anti-corrosion coating to ensure suitability for use in corrosive environments.
Datasheet:
DS-2TD2637-10_QY
- 384 × 288 resolution, 17 μm, VOx UFPA, NETD < 35 mK (25°C, F1.0)
- Video content analysis: vehicle/human classification
- Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
- Smoking detection Algorithm
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years guarantee
| Specification | Details |
|---|---|
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 384 × 288 |
| Pixel Pitch | 17 μm |
| Spectral Range | 8 μm to 14 μm |
| Focal Length | 9.7 mm |
| IFOV | 1.75 mrad |
| Aperture | F1.0 |
| Field of View | 37.5° × 28.5° (H × V) |
| Min. Focusing Distance | 1 m |
| Digital Zoom | × 2, × 4 |
| Optical Module | |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Resolution | 2688 × 1520 |
| Min. Illumination | 0.0089Lux @ (F1.6, AGC ON) , 0 Lux with IR |
| Field of View | 84° × 44.8° (H × V) |
| Focal Length | 4 mm |
| Shutter Speed | 1 s to 1/100,000 s |
| White Balance | MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light |
| Day & Night Mode | WDR IR Cut Filter with Auto Switch |
| Aperture | 120 dB |
| Image Effect | Bi-spectrum Image Fusion |
| Target Coloration | Supported in white hot and black hot mode |
| Illuminator | |
| IR Distance | Up to 30 m |
| IR Intensity and Angle | Automatically adjusted |
| Smart Function | VCA: Up to 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules total |
| Temperature Measurement | 3 temperature measurement rule types, 21 rules total (10 points, 10 areas, and 1 line) |
| Temperature Range | -20°C to 150°C (-4°F to 302°F) |
| Temperature Accuracy | ± 8°C (± 14.4°F) |
| Video and Audio | |
| Main Stream | Optical channel: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Thermal channel: 25 fps (1280 × 720, 704 × 576, 352 × 288, 384 × 288) |
| Sub-stream | Optical channel: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240) Thermal channel: 25 fps (704 × 576, 352 × 288, 384 × 288) |
| Video Compression | Main Stream: H.265/H.264 |
| Sub-Stream: H.265/H.264/MJPEG | |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Network Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, TP, Bonjour, SFTP, SRTP, SSL |
| Network Storage | MicroSD/SDHC/SDXC card (up to 256 GB) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| API | ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G) |
| Simultaneous Live View | Up to 20 channels |
| User/Host level Security | Up to 32 users, 3 levels: Administrator, Operator, User User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering |
| Client | iVMS-4200, Hik-Connect |
| Interface | |
| Alarm Input | 2, alarm input (0 VDC to 5 VDC) |
| Alarm Output | 2, alarm output (alarm response actions configurable) |
| Alarm Action | SD recording/Relay output/Smart capture/FTP upload/Email linkage |
| Audio Input | 1, 3.5 mm Mic in/Line in interface |
| Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10% | |
| Audio Output | 1, RJ45 10 M/100 M Self-adaptive Ethernet interface |
| 1, RS-485 interface (half duplex) | |
| Analog Output | 1.0 V [p-p]/75 Ω, PAL/NTSC/BNC |
| General | |
| Menu Language | 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Power Supply | 24 VAC ± 25%, 12 VDC ± 25%, 24 VDC, two-core terminal block |
| PoE (802.3af, class 3) | |
| Power Consumption | 24 VAC ± 25%: 0.8 A to 0.5 A, Max. 9.5 W 12 VDC ± 25%: 0.63 A to 1.06 A, Max. 9 W 24 VDC: 0.4 A, Max. 9.5 W PoE (802.3af, class 3): 36 V to 57 V, 0.28 A to 0.17 A, Max. 10 |
